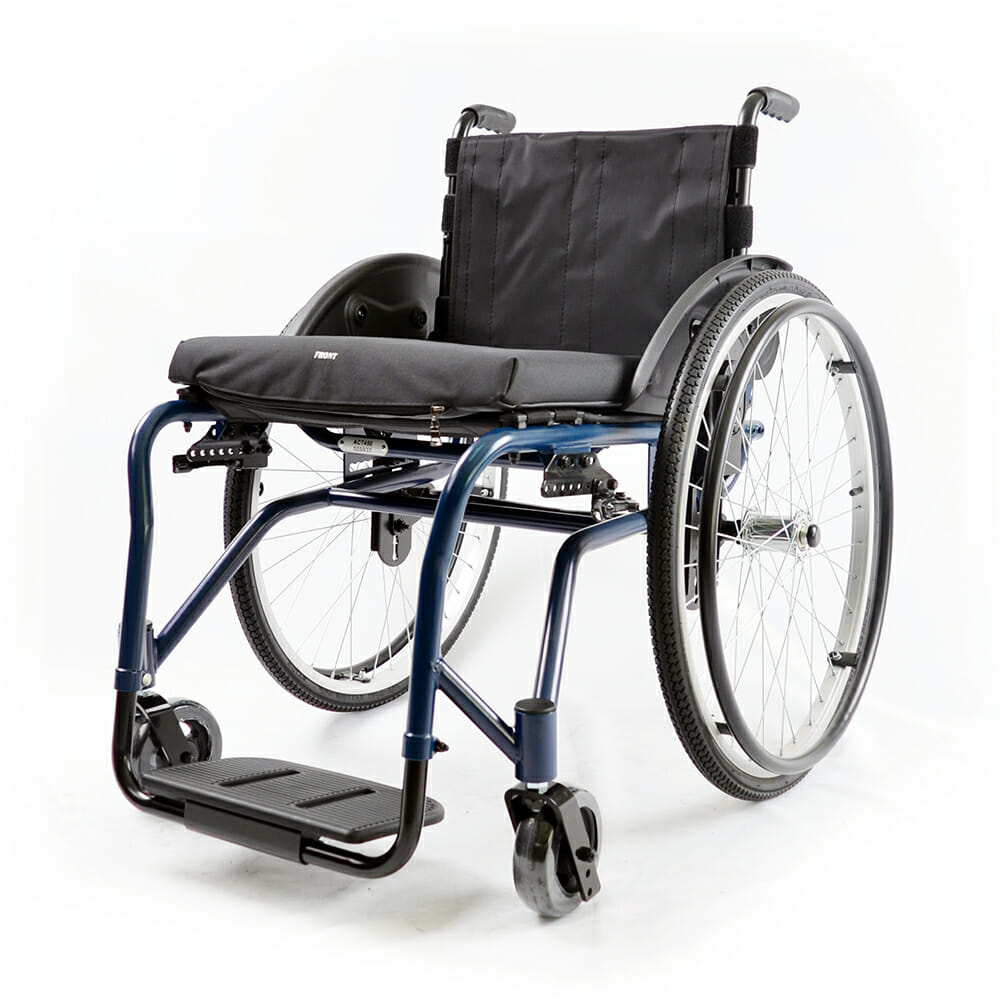

INTCO Active YK9097

Suggested Price

$269

Overview

  • Lightweight for easier propulsion

  • Adjustable wheelbase length, arm support, foot support, and backrest

  • Arm support removable and ergonomic

  • Seat material is a sling design made of high strength 600D nylon Oxford fabric with PVC coating

  • Comes with a basic foam contour cushion, a tire repair kit, and basic tool kit

  • Quick release rear adjustable axle

Intended Users

  • The INTCO Active YK9097 is a manual wheelchair intended for full-time use by people who do not require additional postural support to sit upright. The product should be custom fitted according to the user’s body measurements. Designed for use in accessible and rough terrains.

PRODUCT DETAILS

  • Rigid frame
  • Wheelbase length is adjustable 365mm-440mm (14.37 in. – 17.32 in.)
  • Adjustable backrest height and angle
  • Fold-to-seat back with “quick folding” mechanism
  • Arm support removable and ergonomic with adjustable height and back and forth
  • Seat material is a sling design made of high strength 600D nylon Oxford fabric with PVC coating
  • Includes a basic foam contour cushion
  • Quick release rear adjustable axle
  • Fully adjustable foot support
  • Available with anti-tip wheels
  • Tire repair kit included
  • Basic tool kit for maintenance included

SIZES

Manufacturer Product Number YK9097-XS YK9097-S YK9097-M YK9097-L YK9097-XL
Seat Width 300mm 350mm 400mm 450mm 500mm
Seat Depth 16.5 in. (41.91cm)
Back Height Fold-to-seat back with quick folding mechanism, height not specified
Back Angle 7 angle settings from 78 to 114 degrees at 6-degree intervals
Footrest Height Adjustable from 280mm to 380mm
Rear Wheel Dimensions 600 x 38.1mm diameter (24 x 1.5 in.)
Rear Wheel Axle Adjustability Adjustable at 7 settings each 1.25cm apart
Caster Dimensions 12.7cm (5 in.) diameter and 5cm (2 in.) wide
Overall Width Open 530mm / 580mm / 630mm / 680mm / 730mm
Overall Height Closed 530mm / 580mm / 630mm / 680mm / 730mm
Overall Length 860mm (300mm); 910mm (350 – 500mm)
Product Weight 19.9/22.4kg (17.7kg without rear wheel) 20.2/22.7kg (18kg without rear wheel) 20.55/23.05kg (18.35kg without rear wheel) 21/23.5kg (18.8kg without rear wheel) 21.55/24.05kg (19.35kg without rear wheel)
Weight Capacity 100kg (220lbs)
Certification N/A
Warranty



ACCESSORIES

Toolkit included:

  • 10mm Hex Socket
  • 19mm Hex Wrench
  • 17-19mm Hex Socket
  • 10-13mmHex Wrench *2
  • Pump
  • Bicycle tire repair Kit



An additional armrest is available.

SUPPORT MATERIALS

User Manual

Download

Assembly Guide

Download

PROVISION

Important:  This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
