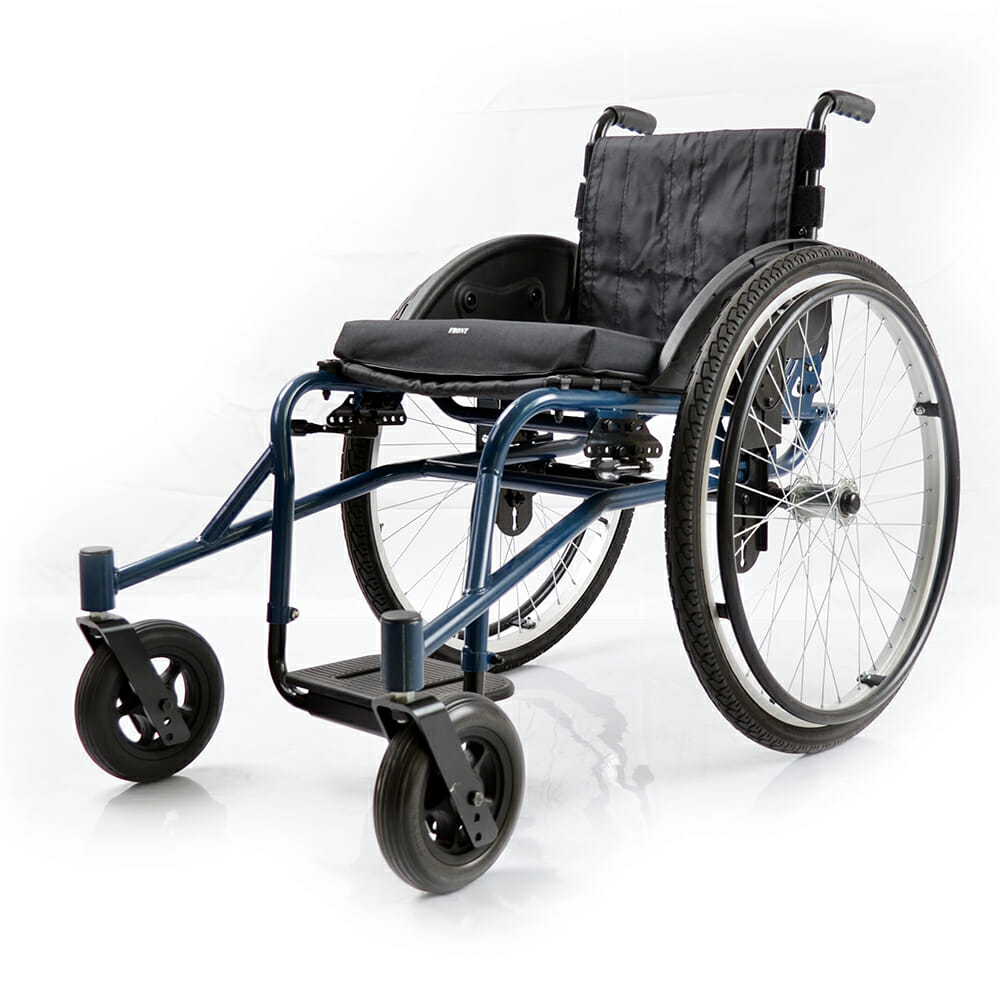

INTCO All Terrain YK9098

Suggested Price

$249

Overview

  • Lightweight for easier propulsion

  • Back height is adjustable and back recline has 7 angle options

  • Multi-position adjustability on back, arm, and foot supports

  • Sling design seat is made of high strength 600D nylon Oxford fabric with PVC coating

  • Comes with flat foam cushion with fixed cover

  • Includes quick release rear axle

Intended Users

  • The INTCO All Terrain YK9098 is a manual wheelchair intended for full-time use by people who do not require additional postural support to sit upright. The product should be custom fitted according to the user’s body measurements. Designed for use in accessible and rough terrains.

PRODUCT DETAILS

  • Rigid frame is made of steel tube

  • Back height is adjustable and back recline has 7 angle options

  • Arm support is removable and curved, and adjustable

  • Sling design seat is made of high strength 600D nylon Oxford fabric with PVC coating

  • Flat foam cushion with fixed cover is included

  • Fully adjustable foot support

  • Calf strap
  • Includes quick release rear axle

  • Casters are made of polyurethane

  • Anti-tip wheels are available

  • Tire repair kit

  • Basic tool kit for maintenance

SIZES

Manufacturer Product Number YK9098
Carton weight and dimensions 300mm, 24.5kg / 650x870x500mm 350mm, 24.8kg / 650x870x500mm 400mm, 25.2kg / 650x870x500mm 450mm, 25.6kg / 650x870x500mm 500mm, 26.2kg / 650x870x500mm
Seat Width 300mm, 350mm, 400mm, 450mm, 500mm
Seat Depth 41cm (adjustable 36cm and 38.5cm) for 300mm width; 46cm (adjustable 41 cm and 43.5 cm for other width)
Back Height Adjustable 34, 39 and 44cm
Back Angle 7 angle settings from 78 to 114 degrees at 6-degree intervals
Footrest Height Adjustable from 280mm to 380mm
Rear Wheel Dimensions 600 x 38.1mm diameter (24 x 1.5 in.)
Rear Wheel Axle Adjustability Adjustable at 7 settings each 1cm apart
Caster Dimensions 20cm (8in. diameter and 5cm (2in.) wide.
Overall Width Open 530mm / 580mm / 630mm / 680mm / 730mm
Overall Height Closed 530mm / 580mm / 630mm / 680mm / 730mm
Overall Length 1035mm (300mm); 1085mm (350 – 500mm)
Product Weight 22/24.5kg (19.8kg without rear wheel) 22.3/24.8kg (20.1kg without rear wheel) 22.65/25.15kg (20.45kg without rear wheel) 23.1/25.6kg (20.9kg without rear wheel) 23.65/26.15kg (21.45kg without rear wheel)
Weight Capacity 100kg (220lbs)
Certification N/A
Warranty



SUPPORT MATERIALS

User Manual

Download

Assembly Guide

Download

PROVISION

Important:  This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
