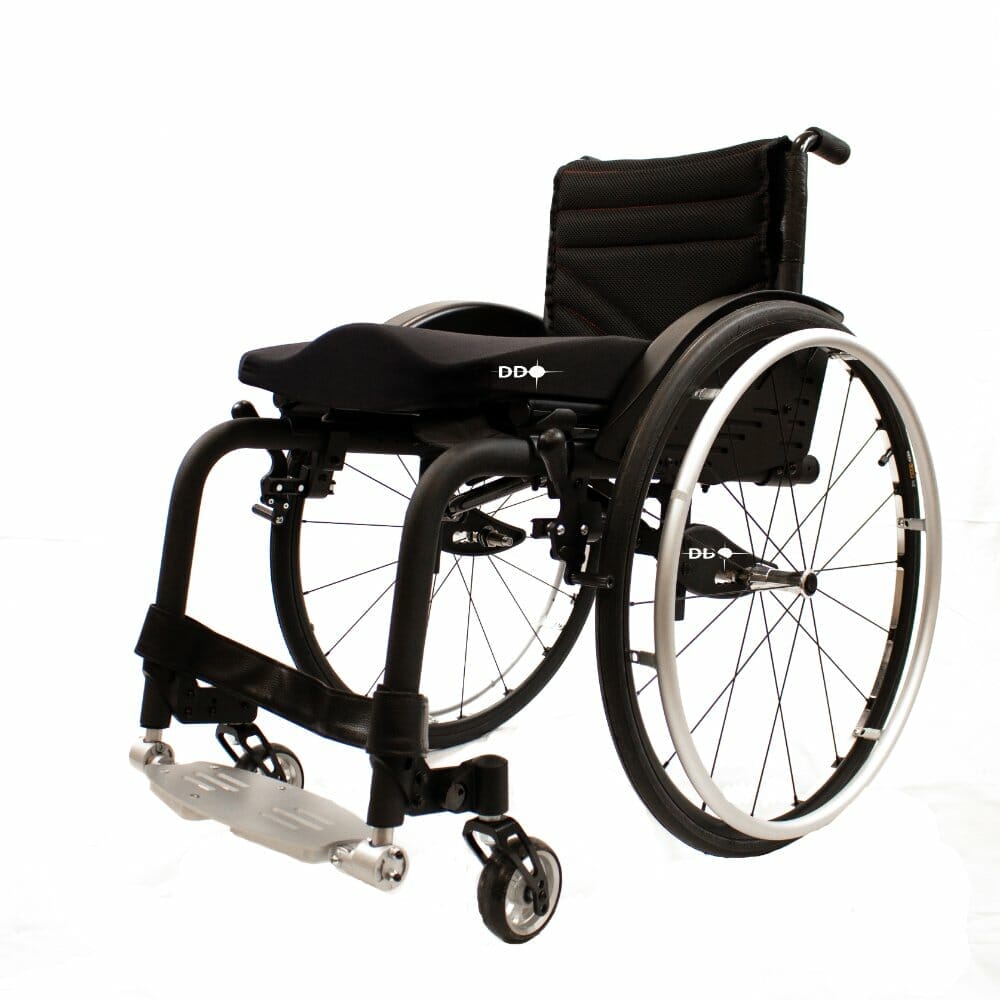

DDO D-XLite Ultralight Adult Folding Wheelchair

D-fitt

Diversability Development Organization (DDO)

The lightest active folding frame wheelchair offered by CLASP
An ultralight adult active wheelchair with minimalist style folding frame normally expected from a rigid wheelchair

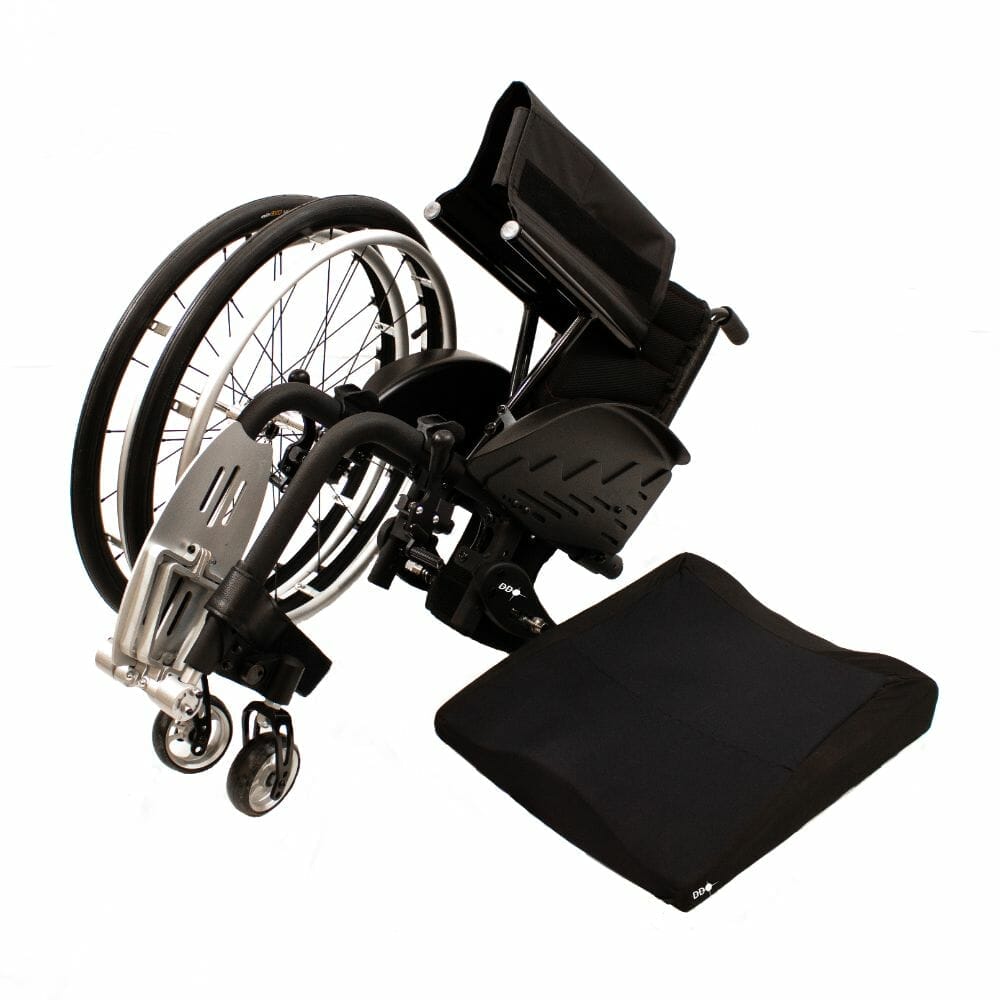

Compact folding dimension make it easy to fold and transport
Offers a smooth ride for urban environments
Comes with the D-Slim Plus Pressure Relief Cushion with Elastic Top Cover

Active adults and teenagers without postural support needs who regularly use a wheelchair.

Price list available upon request.

Contact a sales agent for a free quote.

Lightweight quick release rear wheels, folding backrest for easy storage
High pressure pneumatic tires with aluminum rims
Aluminum push rims
Wheel locks are push to lock – toggle brake
Fully compatible with the D-Seat postural support unit with quick conversion into a postural support wheelchair
Basic tool kit for maintenance
Comes in matte dark gray. Available in a choice of over 30 pre‐selected colors when minimum order quantities are met
Certifications: ISO 13485, ISO 14001, ISO 16840, CE mark
Passed ISO 7176
Please contact warranty@clasphub.org for details on product warranty.

Manufacturer Product Number	D-XLT01M (Available in additional sizes when minimum order quantities are met.)
Seat Width	16″ (40 cm)
Seat Depth	14” (35 cm), 16” (40 cm), adjustable
Seat Angle	8˚
Backrest Height	10” (25 cm), 12” (30 cm) 14” (35 cm), adjustable
Back Angle	Ajustable reclining angle
Side Guards	Height and length adjustable
Footrest Angle	Height and angle adjustable
Rear Wheel Dimensions	24” x 1” diameter (61 cm x 2.5 cm)
Rear Wheel Axle Adjustability	Adjustable in multiple settings
Caster Dimensions	4” x 1” diameter (10 cm x 2.5 cm)
Wheelbase Length	From 12.6” x 15” (32 cm to 38 cm)
Overall Width Open	From 23.2” to 26.4” (59 cm to 67 cm)
Overall Width Folded	10.6” (27 cm)
Overall Length	From 32.3” to 34.6” (82 cm to 88 cm)
Frame Tilt	8˚ fixed
Product weight	23.1 lb (10.5 kg)
Weight Capacity	250 lb (114 kg)
Packaging	One unit per carton
Package Size	43.3” x 12.4” x 25.2” (110 cm x 31.5 cm x 64 cm)
Package Weight	31.6 lb (14.34 kg)

Toolkit included with each wheelchair:

Important:  This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
