Suggested Price

  • USD $4.00 – $8.15 each, see chart below for pricing details

Overview

  • The positioning straps can be used either as a complete set or in various combinations of models and sizes according to users’ needs
  • Complete set includes thoracic strap, six-point shoulder strap/chest strap combination, four-point pelvic strap, two-point pelvic strap and foot strap in various sizes
  • Can be fitted to virtually any wheelchair or seating system

Intended Users

  • People who need additional support in the wheelchair or seating system

PRODUCT DETAILS

  • Fully adjustable
  • Includes thoracic strap, six-point shoulder strap/chest strap combination, four-point pelvic strap, two-point pelvic strap and foot strap in various sizes
  • Can be used either as a complete set or in various combinations
  • Quick release system for increased safety
  • Material: PU, Nylon
  • Color: black
  • Certifications: ISO 16840, ISO 13485, ISO 14001

SIZES

*Sold individually or in cartons of 10 units. Prices are listed per strap.

Product Code Product Description Units per Carton Number of Boxes Gross Weight (kg) Box Dimensions (cm) Maximum User Weight Suggested Price per strap (USD)
DTS-01-XXS Thoracic strap 3S, 10″ – 11″ (25.4 cm – 27.9 cm) seat width 10 1 1.30 40 x 25 x 20 25 kg to 100 kg 7.00
DTS-01-XS Thoracic strap 2S, 11″ – 13″ (27.9 cm – 33 cm) seat width 10 1 1.50 40 x 25 x 20 25 kg to 100 kg 7.00
DTS-01-S Thoracic strap S, 14″ – 15″ (35.6 cm – 38.1 cm) seat width 10 1 1.55 40 x 25 x 20 25 kg to 100 kg 7.40
DTS-01-M Thoracic strap M, 15″ – 16″ (38.1 cm – 40.6 cm) seat width 10 1 1.70 40 x 25 x 20 25 kg to 100 kg 7.50
DTS-01-L Thoracic strap L, 16″ – 18″ (40.6 cm – 45.7 cm) seat width 10 1 1.90 40 x 25 x 20 25 kg to 100 kg 7.50
DCH-01-S Six-point shoulder strap/chest strap combination S, 10″ – 12″ (25.4 cm – 30.5 cm) seat width 10 1 1.80 40 x 25 x 20 25 kg to 100 kg 7.70
DCH-01-M Six-point shoulder strap/chest strap combination M, 13″ – 15″ (33 cm – 38.1 cm) seat width 10 1 2.05 40 x 25 x 20 25 kg to 100 kg 7.90
DCH-01-L Six-point shoulder strap/chest strap combination L, 15″ – 18″ (38.1 cm – 45.7 cm) seat width 10 1 2.55 40 x 25 x 20 25 kg to 100 kg 8.10

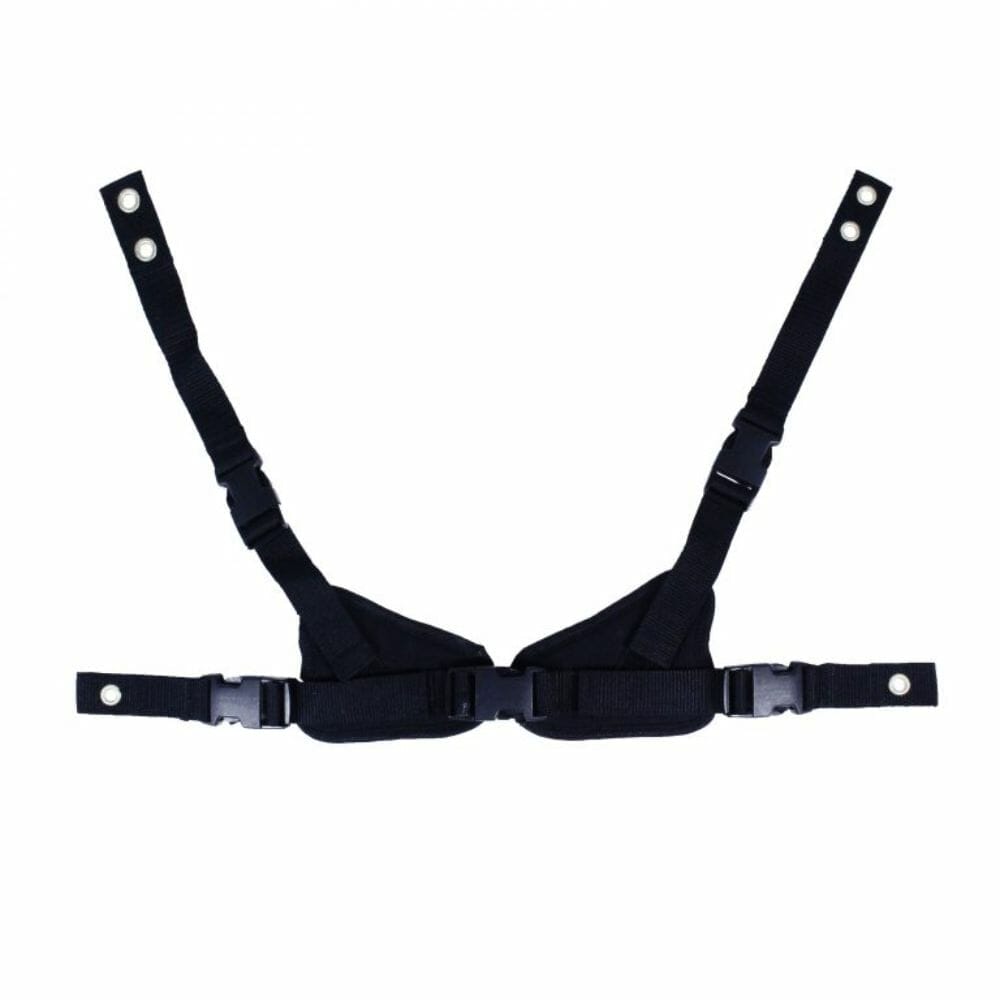

D4HB-01-S Four-point pelvic strap S, 10″ – 12″ (25.4 cm – 30.5 cm) seat width 10 1 0.90 40 x 25 x 20 25 kg to 100 kg 7.00
D4HB-01-M Four-point pelvic strap M, 12″ – 14″ (30.5 cm – 35.6 cm) seat width 10 1 1.10 40 x 25 x 20 25 kg to 100 kg 7.25
D4HB-01-L Four-point pelvic strap L, 14″ – 18″ (35.6 cm – 45.7 cm) seat width 10 1 1.80 40 x 25 x 20 25 kg to 100 kg 8.15
D2HB-01-S Two-point pelvic strap S, 10″ – 12″ (25.4 cm – 30.5 cm) seat width 10 1 1.50 40 x 25 x 20 25 kg to 100 kg 6.05
D2HB-01-M Two-point pelvic strap M, 12″ – 14″ (30.5 cm – 35.6 cm) seat width 10 1 1.60 40 x 25 x 20 25 kg to 100 kg 6.15
D2HB-01-L Two-point pelvic strap L, 14″ – 18″ (35.6 cm – 45.7 cm) seat width 10 1 2.30 40 x 25 x 20 25 kg to 100 kg 7.65

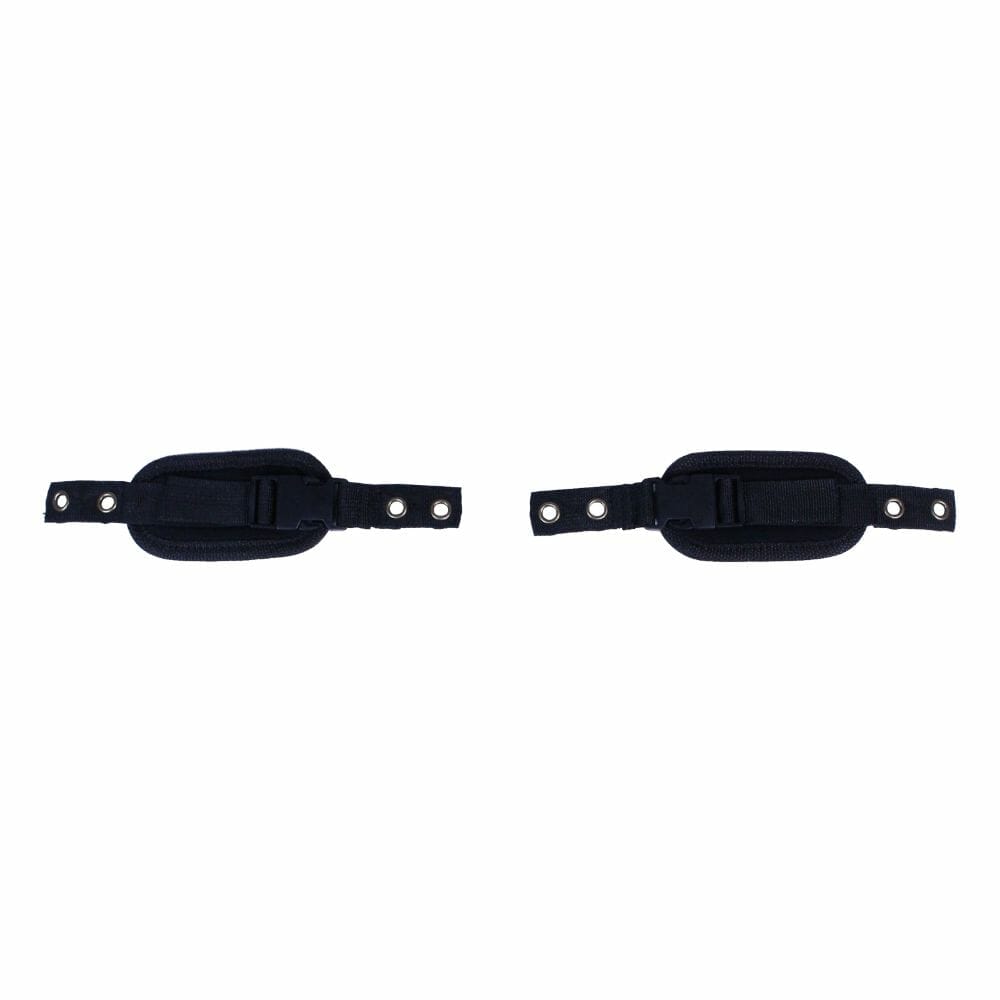

DFS-01-S Foot strap S, 10″ – 12″ (25.4 cm – 30.5 cm) seat width 20 1 0.80 40 x 25 x 20 25 kg to 100 kg 4.00
DFS-01-M Foot strap M, 12″ – 14″ (30.5 cm – 35.6 cm) seat width 20 1 0.90 40 x 25 x 20 25 kg to 100 kg 4.10
DFS-01-L Foot strap L, 14″ – 18″ (35.6 cm – 45.7 cm) seat width 20 1 1.00 40 x 25 x 20 25 kg to 100 kg 4.15

SUPPORT MATERIALS

Product Information Sheet

Download

PROVISION

Important:  This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
