DDO D-XLite Ultralight Adult Folding Wheelchair

D-fitt
D-fitt
previous arrow
next arrow
D-fitt
D-fitt
previous arrow
next arrow

Suggested Price

$550

Overview

  • The lightest active folding frame wheelchair offered by CLASP
  • An ultralight adult active wheelchair with minimalist style folding frame normally expected from a rigid wheelchair

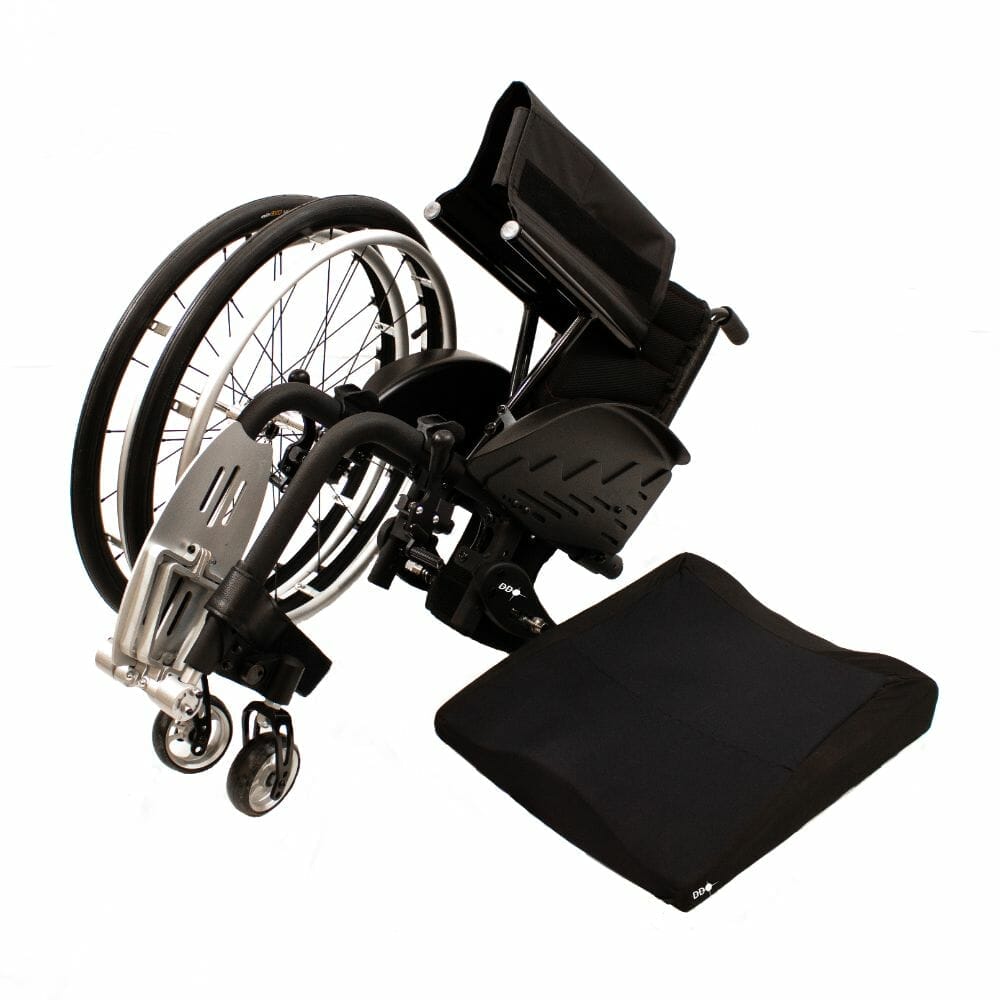

  • Compact folding dimension make it easy to fold and transport
  • Offers a smooth ride for urban environments
  • Comes with the D-Slim Plus Pressure Relief Cushion with Elastic Top Cover

Intended Users

  • Active adults and teenagers without postural support needs who regularly use a wheelchair.

PRODUCT DETAILS

  • Designed for an urban environment
  • Folding X‐brace frame
  • Aluminum frame
  • Includes a D-Slim Plus Pressure Relief Cushion with Elastic Top Cover
  • Cushion can be cut to adjust seat depth
  • Adjustable seat depth
  • Adjustable backrest height, recline and support tension
  • Folding, flip-up footrest
  • Adjustable footrest height and angle
  • Calf strap included
  • Push handles adjustable in three heights
  • Adjustable side guards
  • Lightweight quick release rear wheels, folding backrest for easy storage
  • High pressure pneumatic tires with aluminum rims
  • Aluminum push rims
  • Wheel locks are push to lock – toggle brake
  • Fully compatible with the D-Seat postural support unit with quick conversion into a postural support wheelchair
  • Basic tool kit for maintenance
  • Comes in matte dark gray. Available in a choice of over 30 pre‐selected colors when minimum order quantities are met
  • Certifications: ISO 13485, ISO 14001, ISO 7176, CE marked, ISO 16840
  • Please contact warranty@clasphub.org for details on product warranty.

SIZES

Manufacturer Product Number D-XLT01M (Available in additional sizes when minimum order quantities are met.)
Seat Width 16″ (40 cm)
Seat Depth 14” (35 cm), 16” (40 cm), adjustable
Seat Angle 8 degrees
Backrest Height 10” (25 cm), 12” (30 cm) 14” (35 cm), adjustable
Back Angle Ajustable reclining angle
Side Guards Height and length adjustable
Footrest Angle Height and angle adjustable
Rear Wheel Dimensions 24” x 1” (61 cm x 2.5 cm)
Rear Wheel Axle Adjustability Adjustable in multiple settings
Caster Dimensions 4” x 1” (10 cm x 2.5 cm)
Wheelbase Length From 12.6” x 15” (32 cm to 38 cm)
Overall Width Open From 23.2” to 26.4” (59 cm to 67cm)
Overall Width Folded 10.6” (27 cm)
Overall Length From 32.3” to 34.6” (82 cm to 88 cm)
Frame Tilt 8 degrees fixed
Product weight  23.1 lb (10.5 kg)
Weight Capacity 250 lb (114 kg)
Packaging One unit per carton
Package Size 43.3” x 12.4” x 25.2” (110 cm x 31.5 cm x 64 cm)
Package Weight 31.6 lb (14.34 kg)

ACCESSORIES

Toolkit included with each wheelchair:

  • 1 Allen key 3 mm
  • 1 Allen key 4 mm
  • 1 Allen key 5 mm
  • 2 Flat multi-spanners

SUPPORT MATERIALS

Product Information Sheet

Download

PROVISION

Important:  This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
