Supplier

Participant Assistive Products

Overview

  • Highly adjustable tilt wheelchair
  • Transportable and super durable–ready for any adventure!
  • Simple to fold–easily fits into a compact car trunk
  • Postural support with wide recline adjustment range
  • Amazing growability range and customization options
  • Activity tray included
  • Great for both indoor and outdoor use

Intended Users

  • Children with postural support and mobility needs



This product has been approved by the Product Advisory Council.

PRODUCT DETAILS

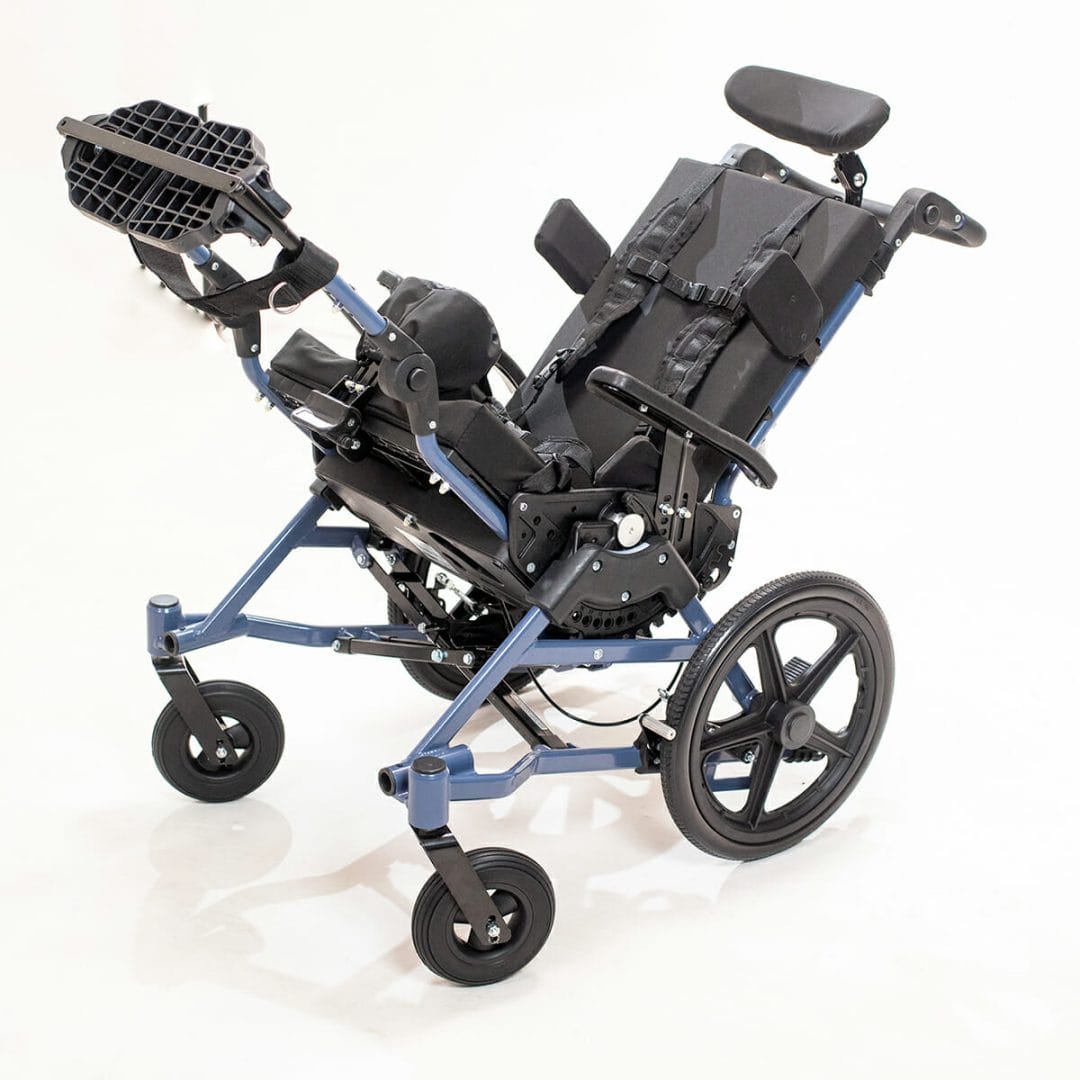

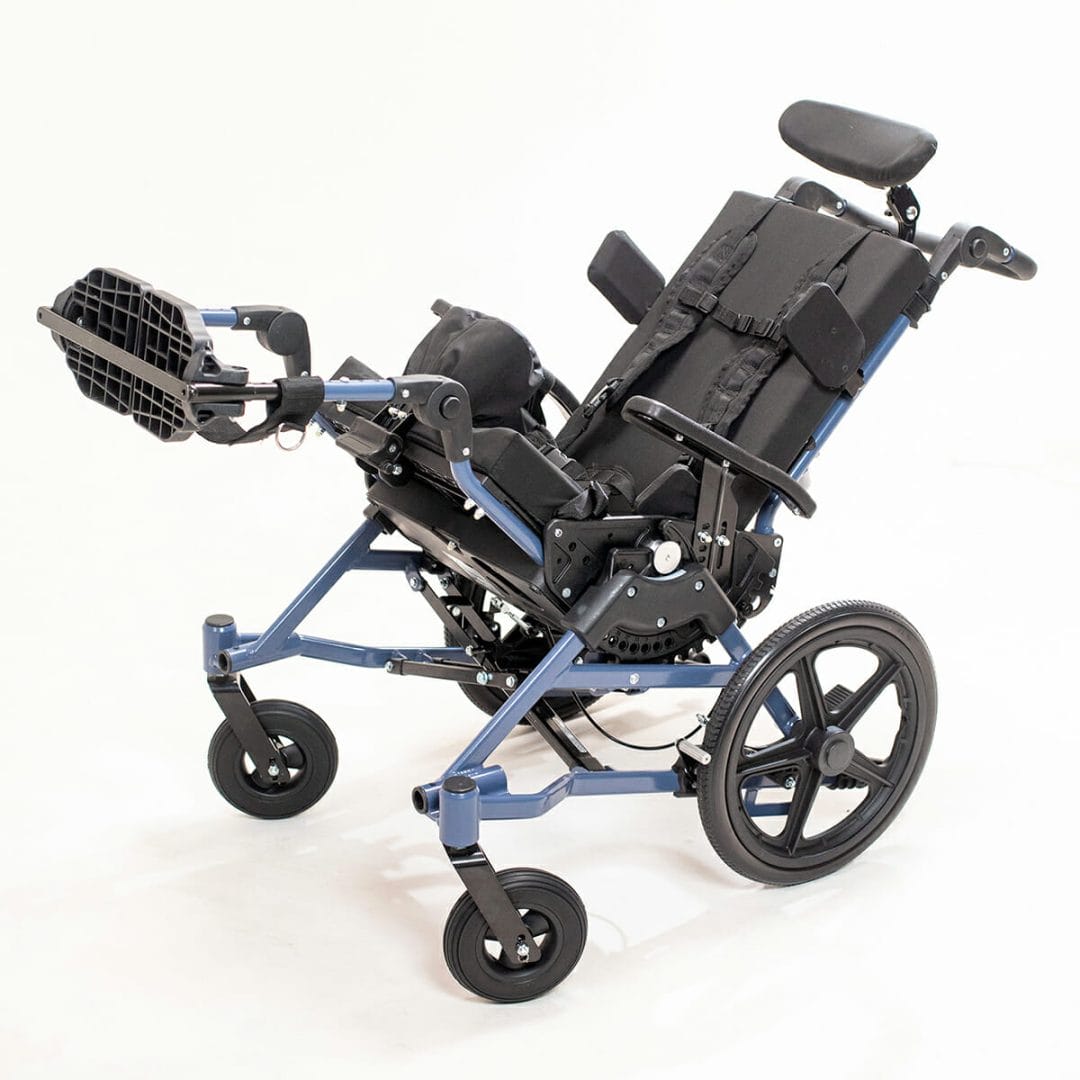

  • Tilts from -9° to 45° to manage pressure and promote healthy posture
  • Lightweight aluminum and easy to lift. The heaviest piece is only 29 lbs (13 kg)
  • Hip adjustment range from 7 ½” to 14 ⅜” serves small children and early teens
  • Adjustable recline aids rest, dressing, and daily activities

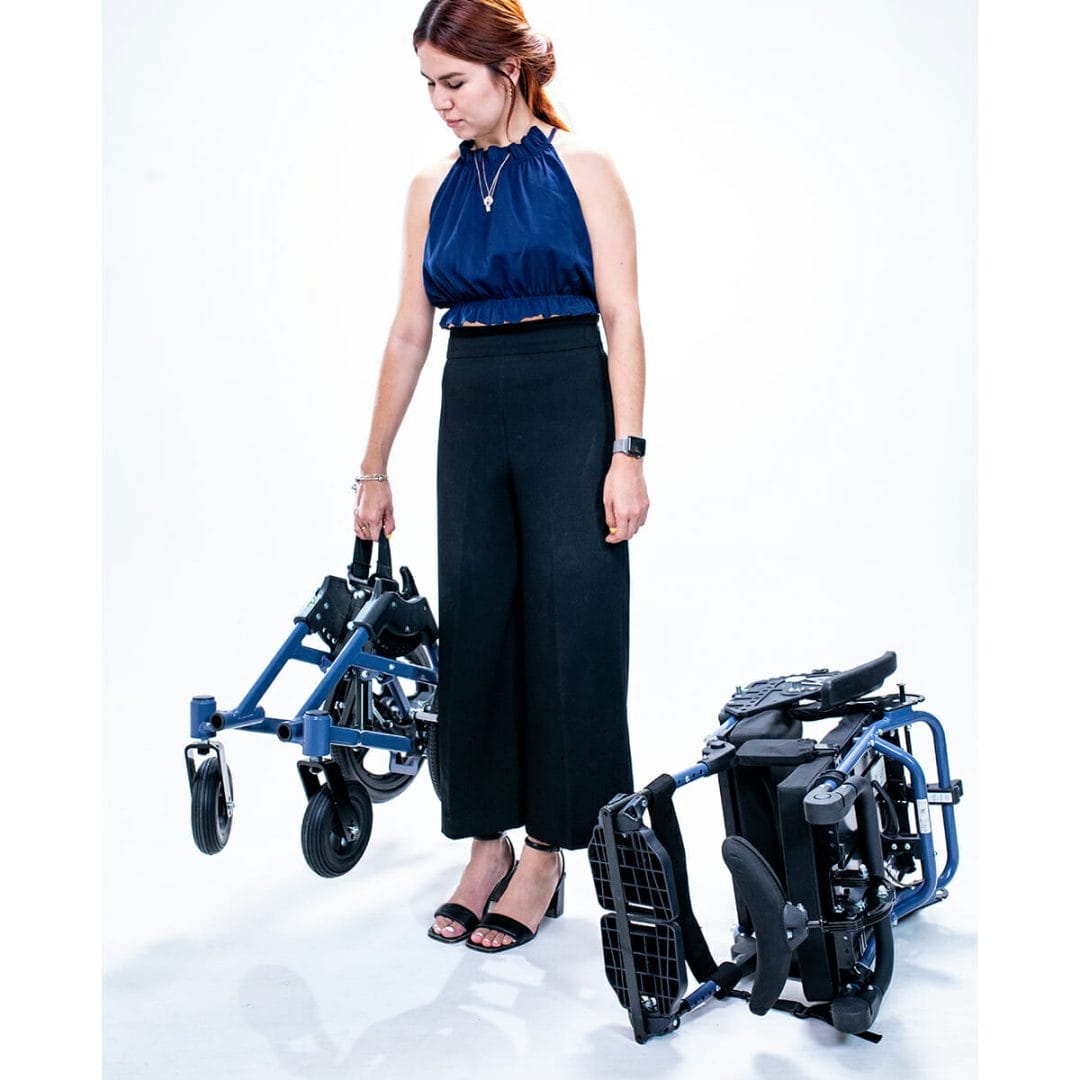

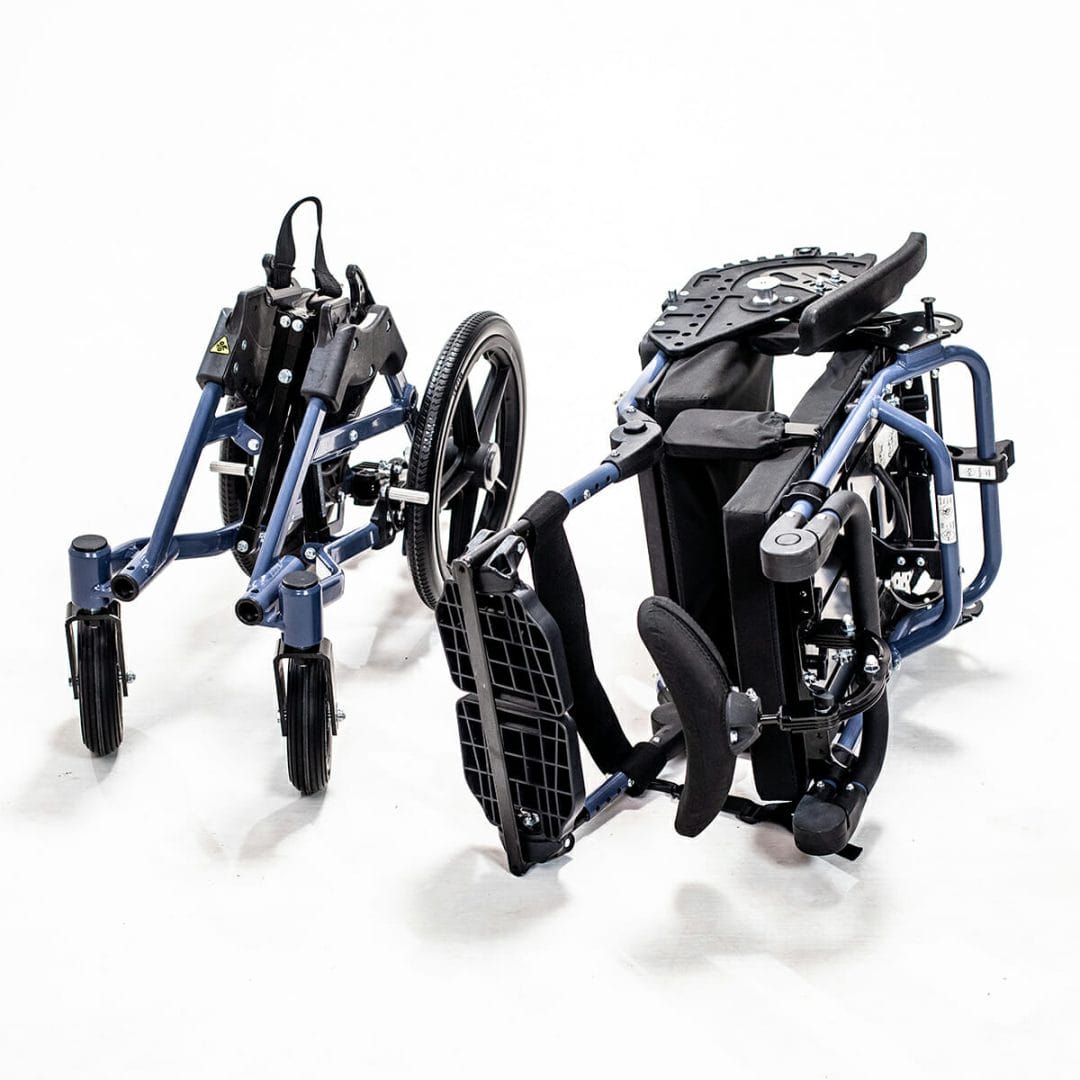

  • X-brace frame folds quickly for travel in small car or as airplane baggage
  • Comes with a pre-contoured, molded polyurethane foam cushion with 5 mm loaded contour depth with a thickness of 50 mm
  • The cushion cover is a four-way stretch and waterproof fabric with a Velcro closure on the back of the cushion. Easy to remove and wash

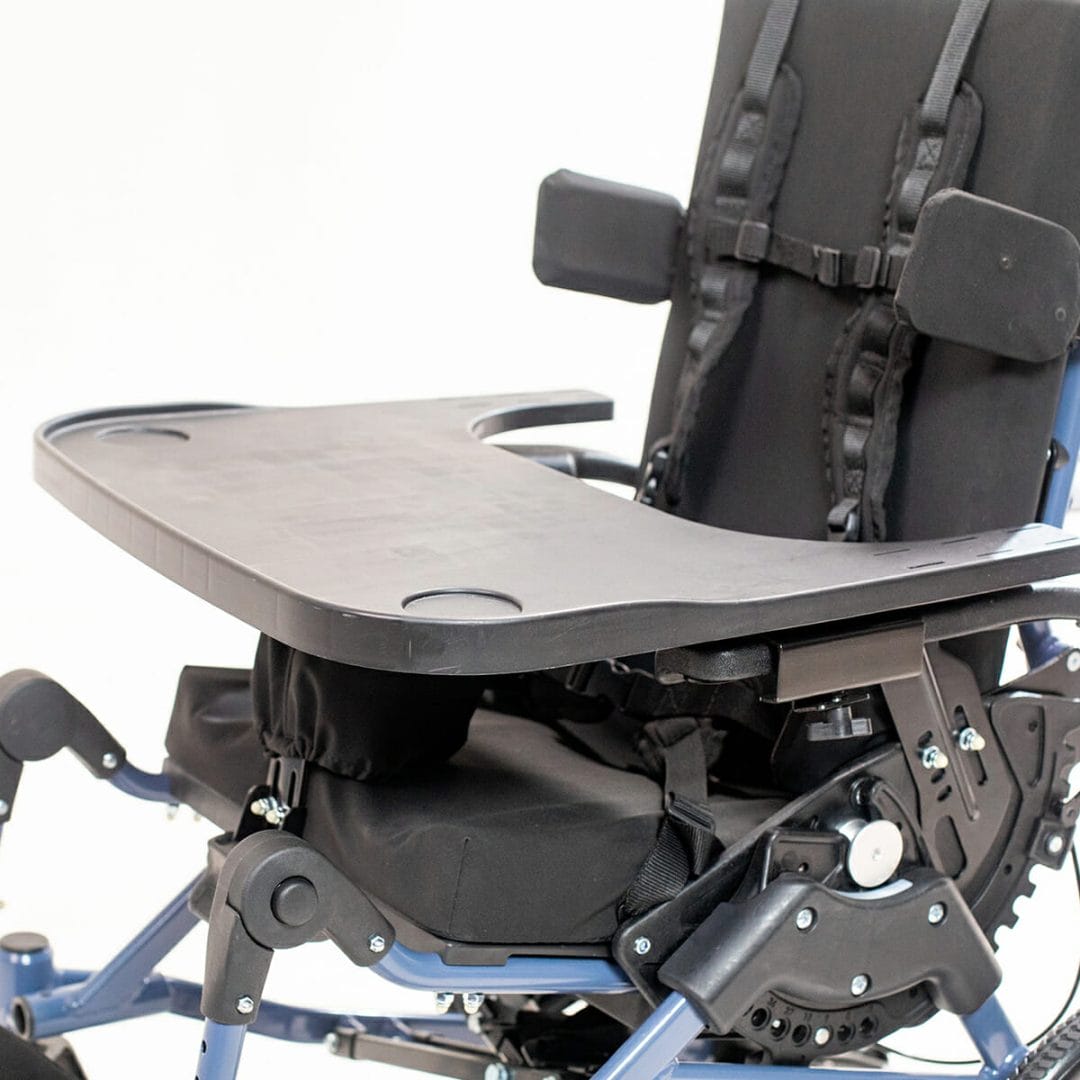

  • Activity Tray included and many accessories and spare parts are available
  • Certifications: ISO 9001-2015, ISO 13485
  • For details on the CLASP warranty, click here. All wheelchairs must be registered in order to activate warranty coverage.

SIZES

Seat Width 7.5” – 14 8” (190 mm – 365 mm)
Product Weight 51.8 lbs (23.5 kg)
Seat Depth 8.75 – 14.25” (225 – 360)
Seat-to-Back Angle 75°, 82°, 90° (vertical), 97°, 105°, 112°, 120°, 127°, 135°



Tilt/Seat Angle 9°, 0° (horizontal), 9°, 18°, 27°, 36°, 45°
Backrest Height 11.5” – 22” (290 mm – 560 mm)
Arm Support 6.5” – 8.5” (165 mm – 215)
Foot Support Height, angle, depth and width adjustable, independent or joined, detachable or folding, lower leg angle is adjustable
Rear Wheel 16″ solid (405 mm) with 16” x 1.75″ tires
Front Wheel 6 x 3” (152 mm x 75 mm)
Seat Module The aluminum seat frame folds like an M. Fits onto stationary base. Fits into a large backpack for motorcycle transportation. Flat bottom allows use on typical furniture
Wheelbase Length 21.25” (540 mm)
Overall Width 26.5” (670 mm)
Overall Length 30 5/16” (770 mm)
Weight Capacity 110 lbs (50 kg)
Packaging One unit per carton
Package Size 34.25” x 29.9” x 20.5” (870 mm x 760 mm x 520 mm
Package Weight 63.9 lbs (29 kg)

ACCESSORIES

  • Activity tray
  • Anti-tip wheels
  • Abductor
  • Headrest and quick-release 4-axis bracket
  • Hip guides and lateral trunk supports
  • Butterfly body harness and four-point pelvic strap
  • Cub contour cushion

SUPPORT MATERIALS

PROVISION

Important: This wheelchair should be provided by a therapist trained in Wheelchair Service Training Package – Intermediate Level.

Have questions about how the ordering process works?

Find the most appropriate product for the people you serve.
