Supplier

Motivation

Overview

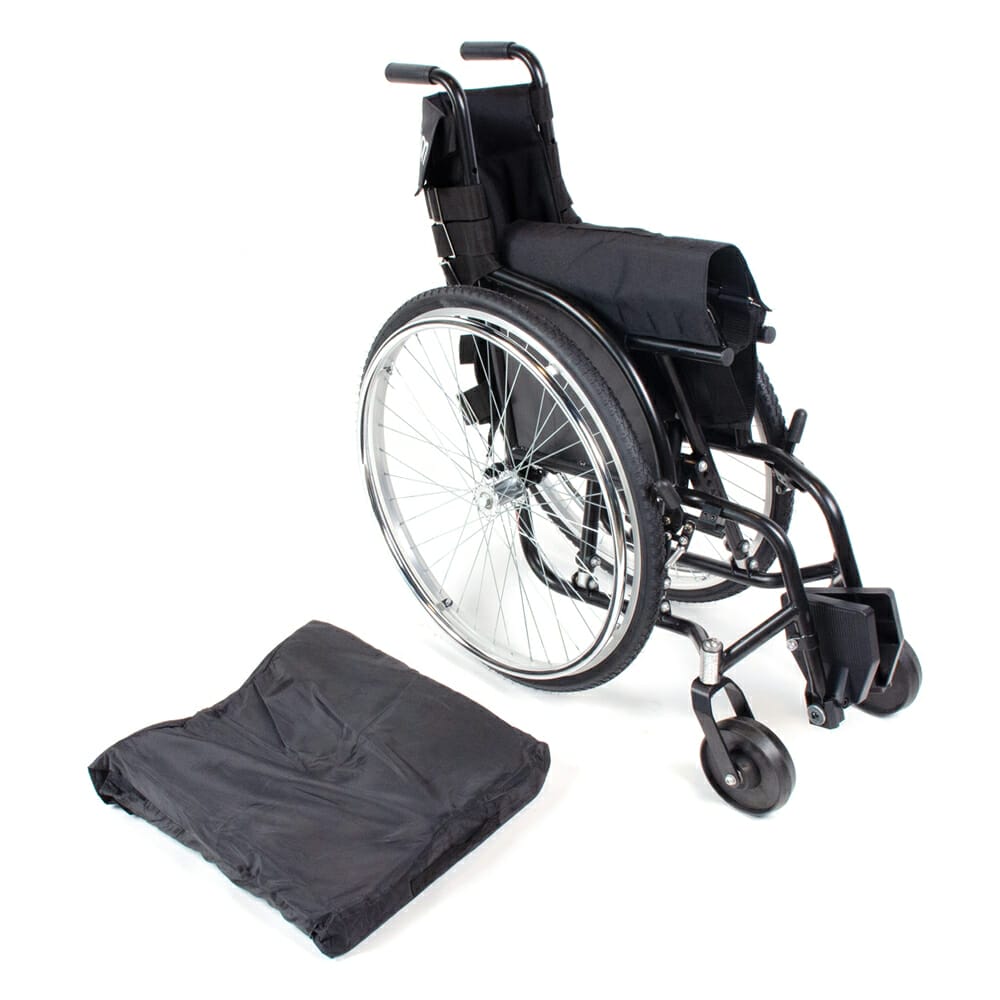

  • Size adjustable, active, four-wheel active wheelchair for semi-urban environments
  • Wide casters are shock absorbing for a smoother ride over bumpy terrain
  • Intended for use indoors or outdoors
  • This wheelchair can be folded to facilitate storage and transportation
  • Each chair includes a foam pressure relief cushion, basic tool kit, and tire repair kit

Intended Users

  • Active adults, including older adults (over 65 years old), and older children/teenagers who use the wheelchair as their primary method of mobility
  • Users without postural support needs





Price list available upon request.

Contact a sales agent for a free quote.



This product has been approved by the Product Advisory Council.

PRODUCT DETAILS

  • Folding X-Brace frame is steel with black powder coating
  • Padded seat and back
  • Adjustable footrests
  • Includes a contoured pressure relief cushion suitable for all users and for users with high risk of pressure sores. Cushion allows for comfortable sitting over long periods and gives better comfort and stability. The cushion has a removable and washable water-resistant cover.
  • Wheels have slight camber for improved maneuverability
  • Two 6″ (15 cm) rubber caster wheels, flat profile
  • Height adjustable backrest with tension adjustable backrest upholstery
    • Adjustable seat depth
    • Calf strap
    • Tire repair kit
    • Basic tool kit for maintenance
    • Estimated assembly time: 20 minutes
    • Certifications: ISO 13485, CE mark
    • Passed ISO 7176
    • For details on the CLASP warranty, click here. All wheelchairs must be registered in order to activate warranty coverage.

SIZES

Manufacturer Product Number WM4X-01S WM4X-01M WM4X-01L WM4X-01XL
Seat Width 14.2” (36 cm) 15.7” (40 cm) 17.3” (44 cm) 18.9” (48 cm)
Seat Depth 14.2” (36 cm), 15.7” (40 cm)
Seat Angle Not specified by manufacturer
Seat Height Not specified by manufacturer
Back Height The backrest can be set in two height positions: high and low. The high back is 3.9″ (10 cm) higher than the low.
Back Angle The shape of the backrest can be altered by adjusting the tension of the backrest straps.
Footrest Height The footrest height can be adjusted to different heights.
Rear Wheel Dimensions 26″ x 1.4″ diameter (66 cm x 4 cm) with 40-spoke aluminum rims and pneumatic, medium tread with extra thick inner tubes
Rear Wheel Axle Adjustability Two sealed bearings and 0.47″ (1.2 cm) high tensile axles, interchangeable with WM3 (apart from axle)
Caster Dimensions

6” x 2” diameter

Overall Width Open 29.9″ (76 cm)
Overall Width Closed 15.7″ (39.9 cm)
Overall Length 37.8″ (96 cm)
Product Weight 47 lb (21.3 kg)
Weight Capacity 250 lb (113 kg)
Packaging One unit per carton
Package Size 26″ x 26″ x 17″ (66 cm x 66 cm x 43 cm)
Package Weight 57 lb (26 kg)

ACCESSORIES

Basic tool kit and tire repair kit included:

  • 1 Tire pump
  • 2 Allen keys – “L” shape 5 mm
  • 1 Tool kit (user) bag
  • 2 Multi-function spanners
  • 1 Allen key – “L” shape 4 mm
  • 1 Allen key – “L” shape 6 mm

SUPPORT MATERIALS

Product Promotional Video

Watch

Product Information Sheet

Download

Fiche d’information sur le produit en français

Télécharger

Página de Información en español

Descargar

Supplier Product Summary

Download

Assembly Manual

Download

Part Breakdown

Download

Care and Maintenance Guide

Download

Health and Mobility Guide

Download

PROVISION

Important: This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
