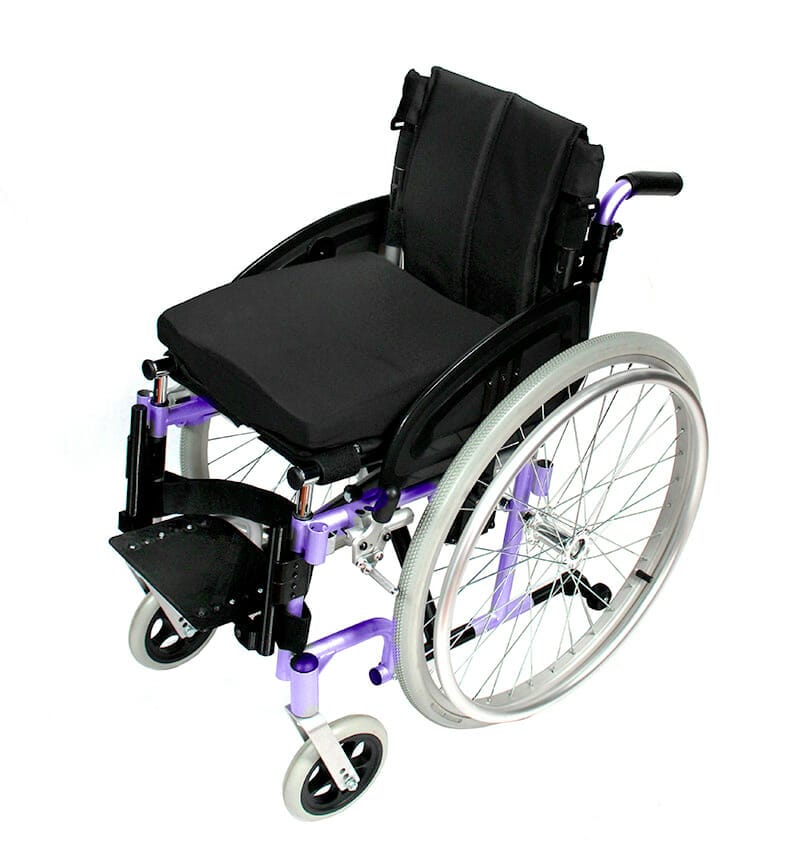

DDO D-Xjunior Active Foldable

D-Xjunior1_200512_V2
D-Xjunior3_200512_V2
D-Xjunior2_200512_V2
previous arrow
next arrow
D-Xjunior1_200512_V2
D-Xjunior3_200512_V2
D-Xjunior2_200512_V2
previous arrow
next arrow

Supplier

Diversability Development Organization (DDO)

Overview

  • An active four-wheel folding frame wheelchair designed for children in less-resourced settings
  • Appropriate for urban and semi-urban environments
  • Comes with multiple added adjustments for comfort and right fit
  • Easy to transport due to its light weight and foldability
  • Includes a children’s D-Slim Plus wheelchair pressure relief cushion

Intended Users

  • Children without complex postural support needs who regularly use a wheelchair

Price list available upon request.

Contact a sales agent for a free quote.



This product has been approved by the Product Advisory Council.

PRODUCT DETAILS

  • X-brace folding steel frame
  • Fully adjustable product
  • Adjustable seat depth
  • Adjustable backrest height
  • Adjustable footrest height and depth
  • Tension adjustable backrest upholstery
  • Independent height adjustable push handles
  • Flip-up, reversible footplate
  • Calf strap
  • Removable side guards with armrest padding
  • Adjustable two rear wheel axle positions
  • Anti-tip wheels
  • Children’s D-Slim Plus wheelchair pressure relief cushion
  • Basic tool kit for maintenance
  • Certifications: CE mark
  • Passed ISO 7176
  • For details on the CLASP warranty, click here. All wheelchairs must be registered in order to activate warranty coverage.

SIZES

Manufacturer Product Number D-XJ-01XS D-XJ-01S
Seat Width 12” (30 cm) 14” (35 cm)
Seat Depth 11” (28 cm), 13” (33 cm), adjustable
Backrest Height 12” (30 cm), 14” (35 cm), 16” (40 cm), adjustable
Seat to Floor Angle 8˚ fixed
Arm Support Adjustable and removable
Footrest Height Adjustable
Rear Wheel Dimensions 22” x 1” diameter (56 cm x 2.5 cm) solid tire wheel, aluminum hand rim
Rear Wheel Axle Adjustability Two forward/backward rear wheel positions
Caster Dimensions 6” x 1” diameter (15 cm x 2.5 cm) solid tire castor wheel
Overall Width 20” (50 cm) 22” (55 cm)
Overall Length 27” (68 cm)
Product Weight 32 lb (14.5 kg) with rear wheels, 25 lb (11.5 kg) without rear wheels 33 lb (15 kg) with rear wheels, 26 lb (12 kg) without rear wheels
Weight Capacity 192 lb (87 kg)
Packaging One unit per carton
Package Size 23.6” x 15.7” x 31.5” (60 cm x 40 cm 80 cm)
Package Weight 37.5 lb (17 kg) 38.5 lb (17.5 kg)

ACCESSORIES

Toolkit included with each wheelchair:

  • 1 Allen key 3 mm
  • 1 Allen key 4 mm
  • 1 Allen key 5 mm
  • 2 Flat multi-spanners
  • 1 Phillips screwdriver
  • 1 Socket multi spanner

SUPPORT MATERIALS

Product Information Sheet

Download

Fiche d’information sur le produit en français

Télécharger

Página de Información en español

Descargar

Assembly and Adjustment Manual

Download

User Manual

Download

Supplier Product Summary

Download

PROVISION

Important:  This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
