Supplier

Diversability Development Organization (DDO)

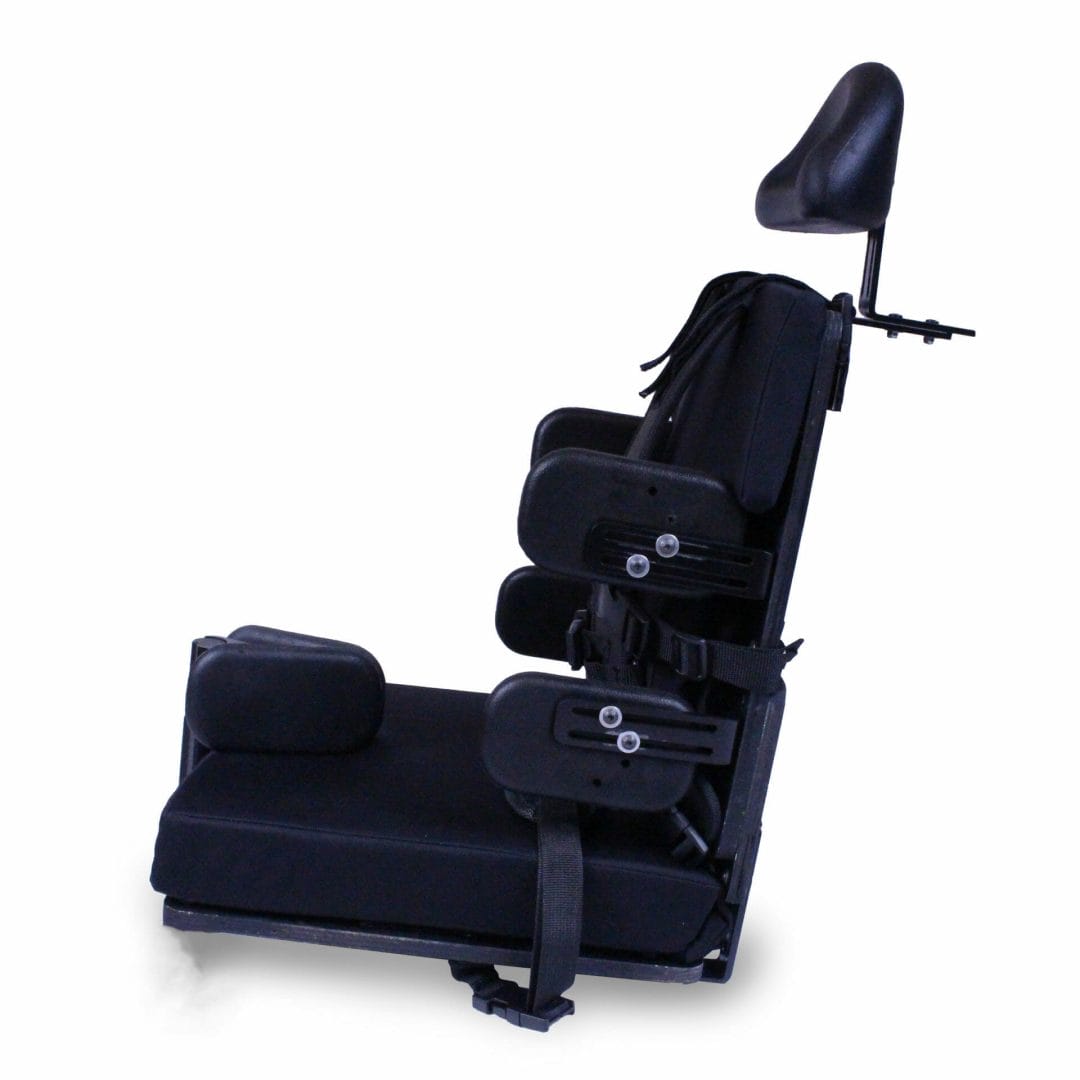

Overview

  • Modular and versatile: can be mounted on virtually any seat-base and contains a complete set of interchangeable postural supports
  • Pre-assembled and ready to be adjusted and custom fitted
  • Seat and back cushions contain foam layers that can be easily shaped for postural support and pressure relief
  • Does not require removal of the existing wheelchair upholstery
  • Easily removed from the wheelchair for folding and transportation

Intended Users

  • Pediatric and adult wheelchair users who require additional postural support to be able to sit upright

Price list available upon request.

Contact a sales agent for a free quote.



This product has been approved by the Product Advisory Council.

PRODUCT DETAILS

  • Available in four sizes

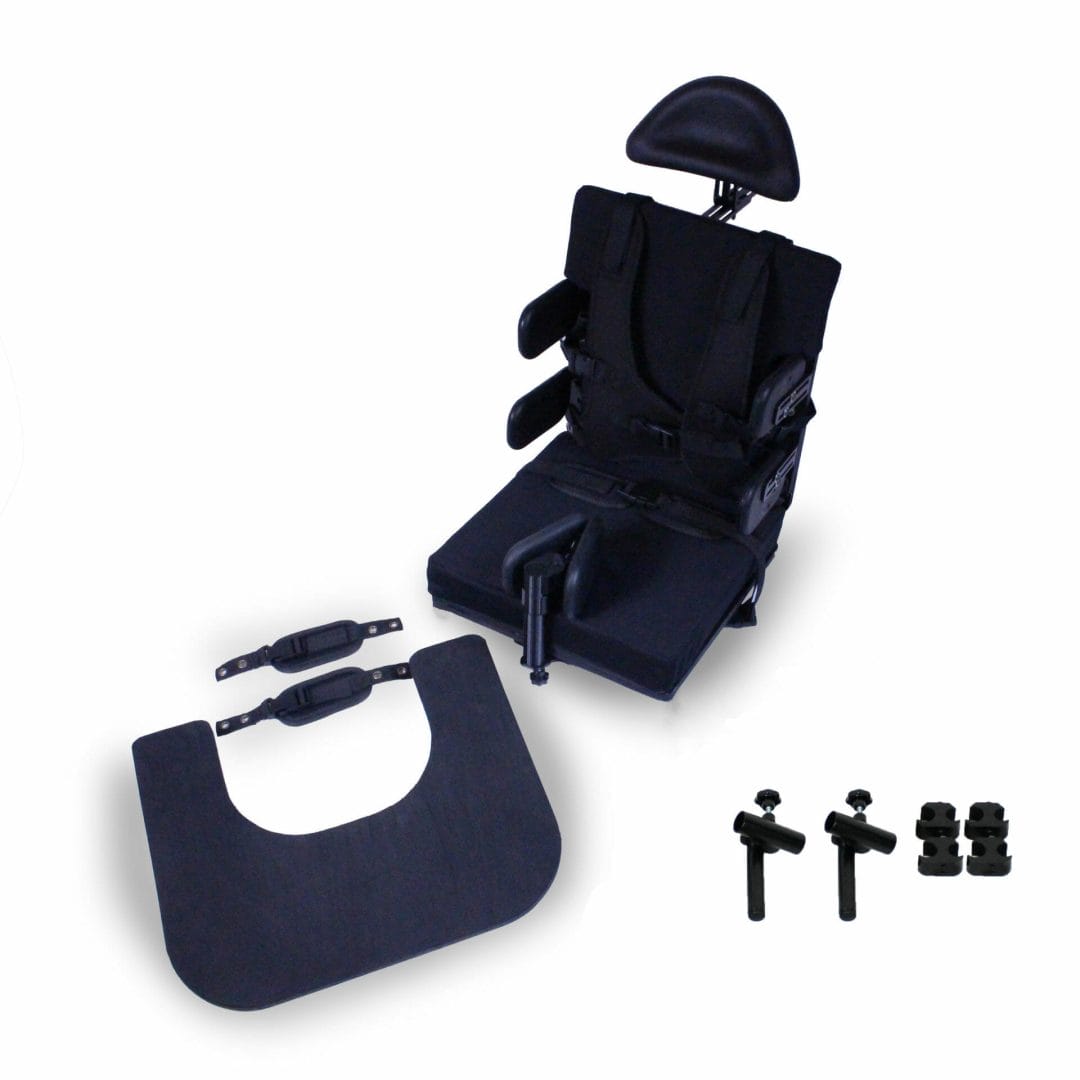

  • Pre-assembled D-Seat includes: 1 seat board, 1 covered seat pad, 1 back board, 1 back board extension, 1 covered back pad, 2 lumbo-sacral support, 1 head support, 4 lateral trunk/pelvic supports, 1 abductor, 1 trunk strap, 1 pelvic strap, 2 foot straps and 1 tray with locking mechanism
  • Rear pelvis pad (sacral pad) is customizable
  • Seat depth and back height are adjustable
  • Soft, molded foam head support is adjustable
  • Straps and belts are included to support pelvis, feet, thoracic area
  • Six-point trunk strap minimizes risk of strangulation but is easy to remove in an emergency
  • Plywood try has a non-slip, easy to clean top surface and a quick release locking mechanism
  • Certification: ISO 16840-3
  • For details on the CLASP warranty, click here. All products must be registered in order to activate warranty coverage.

SIZES

Manufacturer Product Number D-SEAT-01S D-SEAT-01M D-SEAT-01L D-SEAT-01XL
Seat Width 7.5″ – 12” (19 cm – 30 cm) 8.5″ – 14″ (21 cm – 35 cm) 9.5″ – 16″ (23.5 cm – 40 cm) 10.5″ – 18″ (26 cm – 45 cm)
Seat Depth 16” (40 cm) 18” (45 cm) 18” (45 cm) 18” (45 cm)
Backrest Height 18” (45 cm) 20” (50 cm) 22” (55 cm) 24” (60 cm)
Seat-to-Back Angle Brackets can be bent to the desired seat to back angle
Product Weight 19 lb – 22 lb (8.6 kg – 9.9 kg) depending on the size with all PSDs attached
Weight Capacity 110 lb – 220 lb (50 kg – 100 kg)
Packaging One unit per carton
Package Size 22.4″ x 18.5″ x 12.2″ (57 cm x 47 cm x 31 cm) 22.4″ x 18.5″ x 12.2″ (57 cm x 47 cm x 31 cm) 24″ x 24″ x 14.2″ (61 cm x 61 cm x 36 cm) 24″ x 24″ x 14.2″ (61 cm x 61 cm x 36 cm)
Package Weight 26.5 lb (12 kg) 28.7 lb (13 kg) 30.9 lb (14 kg) 33.1 lb (15 kg)

SUPPORT MATERIALS

Product Information Sheet

Download

Fiche d’information sur le produit en français

Télécharger

Página de Información en español

Descargar

Assembly & Adjustment Manual

Download

Assembly Videos

View Videos

PROVISION

Important: This wheelchair should be provided by a therapist trained in Wheelchair Service Training Package – Intermediate Level.
