Supplier

INTCO

Overview

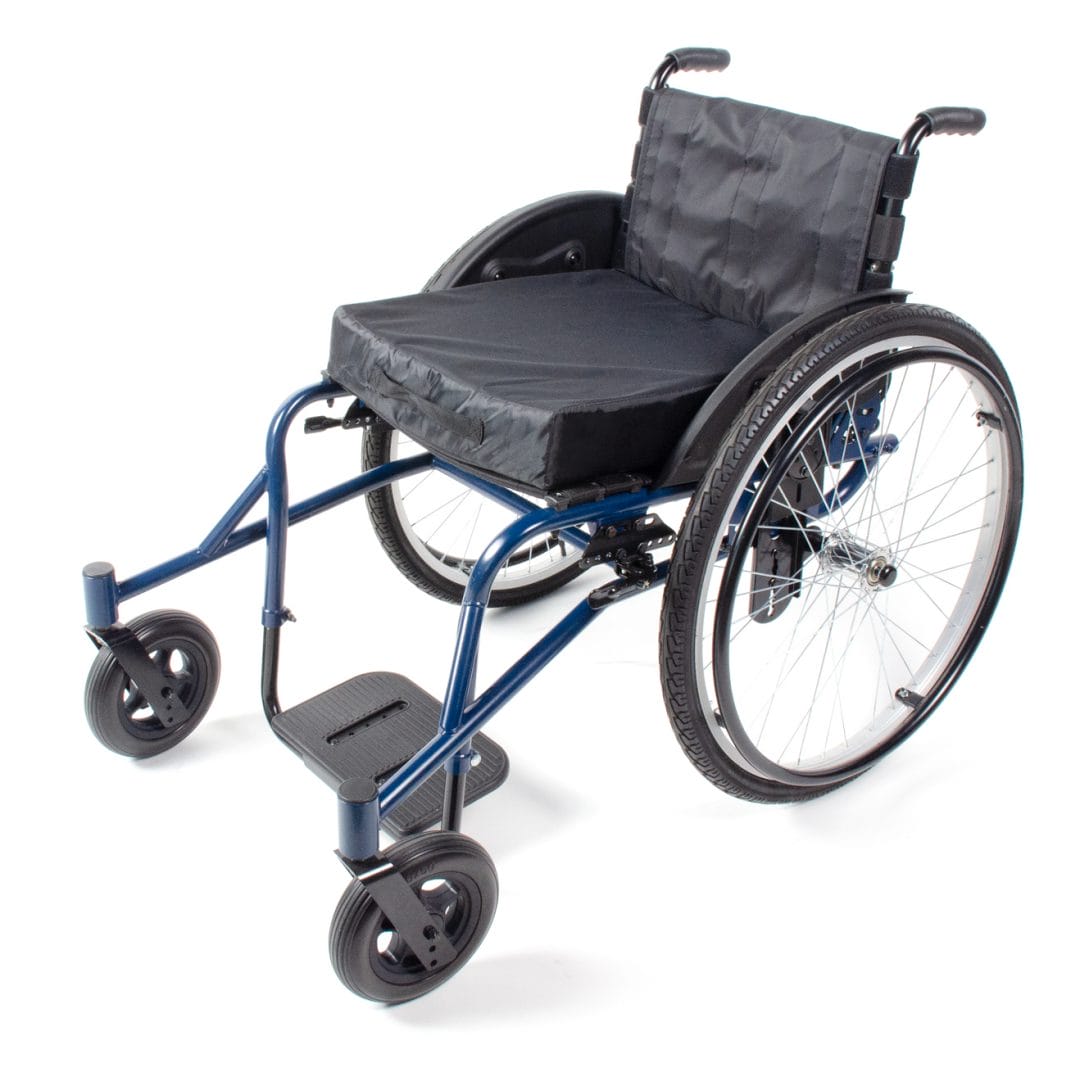

  • A four-wheel all-terrain wheelchair with a rigid frame, this off-road style chair is designed to handle rugged and uneven surfaces.
  • Option of a flat foam cushion with fixed cover or a PRC (additional cost)

Intended Users

  • Active children and adults without postural support needs who regularly use a wheelchair in rugged conditions and on uneven surfaces.
  • PRCs are recommended for users who need increased pressure management and positioning. Lack of and/or poorly fitted PRCs can result in health complications which can lead to death.





Price list available upon request.

Contact a sales agent for a free quote.



This product has been approved by the Product Advisory Council.

PRODUCT DETAILS

  • Rigid, steel frame
  • Back height is adjustable and back recline has seven angle options
  • Sling design seat is made of high strength 600D nylon Oxford fabric with PVC coating
  • Option of a flat foam cushion with fixed cover or a PRC (additional cost)
  • Fully adjustable foot support
  • Calf strap
  • Includes quick release rear axle
  • Polyurethane casters
  • Tire repair kit
  • Basic tool kit for maintenance, plus a tire pump and tire repair kit
  • Certifications: ISO 13485
  • Conformity with CE mark
  • Passed ISO 7176
  • For details on the CLASP warranty, click here. All wheelchairs must be registered in order to activate warranty coverage.

SIZES

Manufacturer Product Number YK9098-300 YK9098-350 YK9098-400 YK9098-450 YK9098-500
Seat Width 12″ (30 cm) 14″ (35 cm) 16″ (40 cm) 18″ (45 cm) 20″ (50 cm)
Seat Depth 12″ (30 cm): adjustable to 14″ (35 cm) and 15″ (38.5 cm) 14″ – 20″ (35 cm – 50 cm): adjustable to 16″ (40 cm) and 17″ (44 cm)
Back Height Adjustable to 13″ (34 cm), 15″ (39 cm), and 17″ (44 cm)
Back Angle Seven angle settings from 78° – 114° at 6° intervals
Footrest Height Adjustable from 11″ – 15″ (28 cm – 38 cm)
Rear Wheel Dimensions 24″ x 1.5″ diameter (61 cm x 4 cm)
Rear Wheel Axle Adjustability Adjustable at seven settings each .4″ (1 cm) apart
Caster Dimensions 8″ x 2″ diameter (5 cm x 20 cm)
Overall Width Open 21″ (53 cm) 23″ (58 cm) 25″ (63 cm) 27″ (68 cm) 29″ (73 cm)
Overall Length 41″ (103.5 cm) 43″ (108.5 cm)
Product Weight 48.5 lb (22 kg), 43.6 lb (19.8 kg) without rear wheel 49.1 lb (22.3 kg), 44.3 lb (20.1 kg) without rear wheel 50 lb (22.7 kg), 45.2 lb (20.5 kg) without rear wheel 50.9 lb (23.1 kg), 46.1 lb (20.9 kg), without rear wheel 52.2 lb (23.7 kg), 47.4 lb (21.5 kg) without rear wheel
Weight Capacity 220 lbs (99.8 kg)
Packaging One unit per carton
Package Weight 54 lb (24.5 kg) 54.6 lb (24.8 kg) 55.6 lb (25.2 kg) 56.4 lb (25.6 kg) 57.8 lb (26.2 kg)
Package Size 26″ x 34″ x 20″ (65 cm x 87 cm x 50 cm)



SUPPORT MATERIALS

Product Information Sheet

Download

Fiche d’information sur le produit en français

Télécharger

Página de Información en español

Descargar

User Manual

Download

Assembly Guide

Download

PROVISION

Important:  This wheelchair should be provided by a therapist trained in the Wheelchair Service Training Package – Basic Level.
